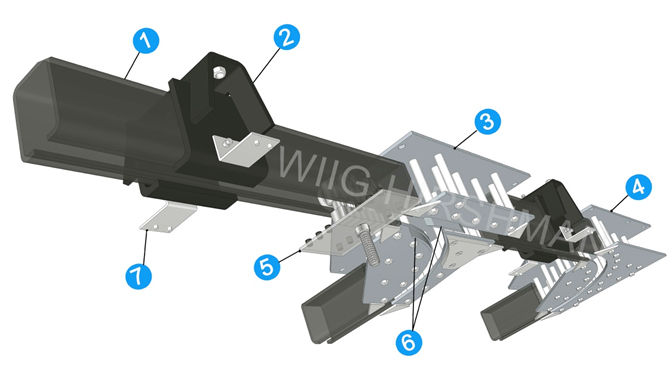

Ultra high shaped track pulley system - T-shaped and L-shaped turning port guidance

#The 260 type heavy-duty automatic turning dock is designed by our company for ultra-high and overweight partitions. According to the requirements of the building space, it can achieve various types of turning pipes to meet the requirements of partition storage. Each dock is equipped with a guiding device in advance before leaving the factory, making it convenient for users to operate. When turning, the partition of more than ten Michael can be easily retracted to the designated position through inertia.

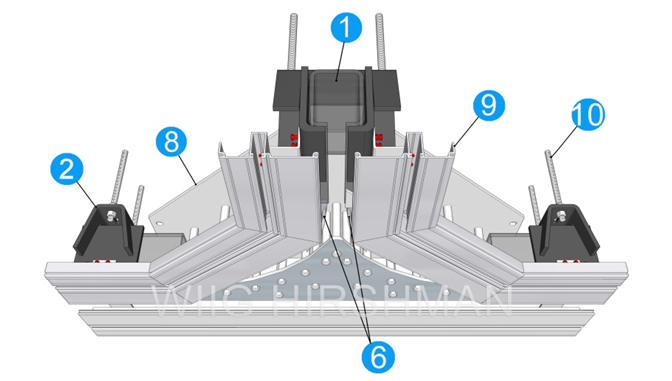

Ultra high shaped track pulley system - Y-shaped turning dock guidance

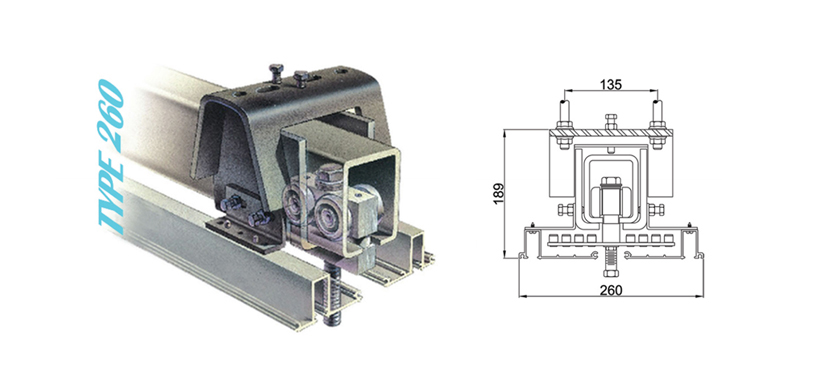

1. # 260 Steel Track

2. Rail suspension code

3. T-shaped turning dock

4. L-shaped turning dock

5. Pulley block

6. Guide plate

7. Rail aluminum corner code

8. Y-shaped turning dock

9. Edge trimming aluminum

10. Adjusting the suspension rod
